Array light series
FY-HMX2
Model:
Product Features:

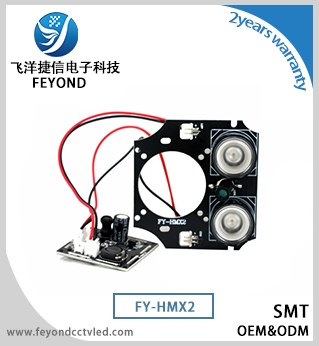

1pcs 850nm ir led 42mil,MCPCB plate, lamp panel for
cctv with bullet lens, IR - CUT interface, with import
lens luminosity uniformity, working temperature control
in 50 degrees Celsius, the service life of 20000 hours.
Features & Benefits Product Specifications Purchasing Process After sale service
1pcs 850nm ir led 42mil,MCPCB plate, lamp panel for
cctv with bullet lens, IR - CUT interface, with import
lens luminosity uniformity, working temperature control
in 50 degrees Celsius, the service life of 20000 hours.

The product name
infrared led board
Model number
FY-HMX2
Product specification
1pcs K1 led
Shine the light
infrared led light
Power
42mil
Whether the waterproof
NO
Voltage
DC12V
Electric current
300mA
Product structure
cctv MCPCB board
IR-CUT support
Yes
Lamp cup angle
15°-30°-45°-60°-90°
Fix lens
16mm/12mm/8mm/6mm/4mm
Effective illumination range
8-40meters
Wavelength range
850nm
Technical parameters
1pcs 850nm ir led 42mil,MCPCB plate, lamp panel for
cctv with bullet lens, IR - CUT interface, with import
lens luminosity uniformity, working temperature control
in 50 degrees Celsius, the service life of 20000 hours.
