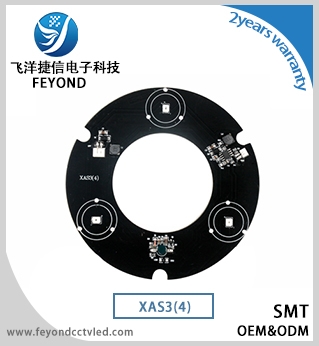

The product name
|
infrared led board
|
|
Model number
|
XAS3(4)
|
|
Product specification
|
1pcs K1 led
|
|
Shine the light
|
infrared led light
|
|
Power
|
42mil
|
|
Whether the waterproof
|
NO
|
|
Voltage
|
DC12V
|
|
Electric current
|
300mA
|
|
Product structure
|
cctv MCPCB board
|
|
IR-CUT support
|
Yes
|
|
Lamp cup angle
|
15°-30°-45°-60°-90°
|
|
Fix lens
|
16mm/12mm/8mm/6mm/4mm
|
|
Effective illumination range
|
8-40meters
|
|
Wavelength range
|
850nm
|
|
Technical parameters
|
1pcs 850nm ir led 42mil,MCPCB plate, lamp panel for
cctv with bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours. |
|
The product name
|
infrared led board
|
|
Model number
|
FY-QC6双光源(2)
|
|
Product specification
|
1pcs K1 led
|
|
Shine the light
|
infrared led light
|
|
Power
|
42mil
|
|
Whether the waterproof
|
NO
|
|
Voltage
|
DC12V
|
|
Electric current
|
300mA
|
|
Product structure
|
cctv MCPCB board
|
|
IR-CUT support
|
Yes
|
|
Lamp cup angle
|
15°-30°-45°-60°-90°
|
|
Fix lens
|
16mm/12mm/8mm/6mm/4mm
|
|
Effective illumination range
|
8-40meters
|
|
Wavelength range
|
850nm
|
|
Technical parameters
|
1pcs 850nm ir led 42mil,MCPCB plate, lamp panel for
cctv with bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours. |
