Normal IR LEDs
FY-36S
Model:
Category:Normal IR LEDs
Product Features:

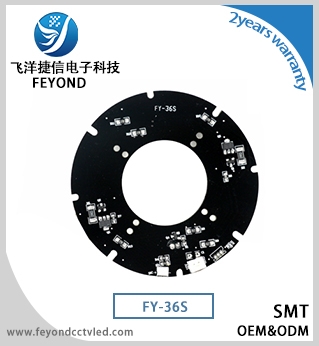

12pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control
Features & Benefits Product Specifications Purchasing Process After sale service
12pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control


The product name

infrared led board

Model number

FY-36S

Product specification

12pcs ir led board

Shine the light

infrared led light

Power

10mil

Whether the waterproof

NO

Voltage

DC12V

Electric current

80mA

Product structure

cctv PCB board

IR-CUT support

Yes

Lamp cup angle

30°-45°-60°-90°

Fix lens

12mm/8mm/6mm/4mm

Effective illumination range

3-12meters

Wavelength range

850nm (12 ir led board)

Technical parameters

12pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
