Product

Normal IR LEDs

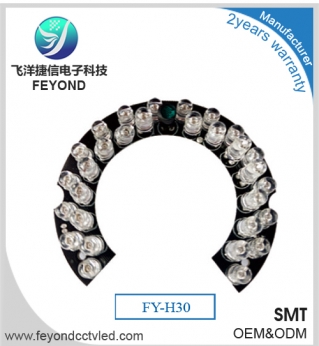

FY-H30

Model：

Category：Normal IR LEDs

Product Features：
30pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.

Features & Benefits Product Specifications Purchasing Process After sale service

30pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.

The product name	infrared led board
Model number	FY-H30
Product specification	30pcs ir led board
Shine the light	infrared led light
Power	10mil
Whether the waterproof	NO
Voltage	DC12V
Electric current	200mA
Product structure	cctv PCB board
IR-CUT support	Yes
Lamp cup angle	30°-45°-60°-90°
Fix lens	12mm/8mm/6mm/4mm
Effective illumination range	5-15meters
Wavelength range	850nm (30 ir led board)
Technical parameters	30pcs 850nm ir led 10mil,PCB plate, lamp panel for cctv with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
