FY-6206-china Ir led,CCTV accessories factory,Ir led manufacturer,Shenzhen Feyond Technology

Product

2835-ARRAY IR LEDs

FY-6206

Model：

Category：2835-ARRAY IR LEDs

Product Features：

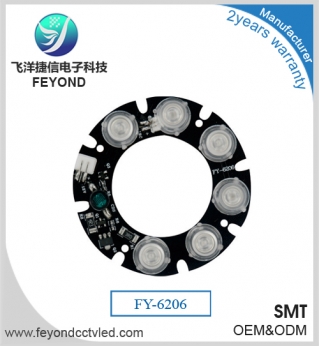

6pcs 850nm ir led 14mil&20mil,MCPCB plate, lamp panel for cctv camera with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.

Features & Benefits Product Specifications Purchasing Process After sale service

6pcs 850nm ir led 14mil&20mil,MCPCB plate, lamp panel for cctv camera with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.

The product name	infrared led board
Model number	FY-6206
Product specification	6pcs 2835 led
Shine the light	infrared led light
Power	14mil&20mil
Whether the waterproof	NO
Voltage	DC12V
Electric current	150mA(14mil)&350mA(20mil)
Product structure	cctv MCPCB board
IR-CUT support	Yes
Lamp cup angle	45°-60°-90°
Fix lens	8mm/6mm/4mm
Effective illumination range	8-25meters
Wavelength range	850nm
Technical parameters	6pcs 850nm ir led 14mil&20mil,MCPCB plate, lamp panel for cctv camera with dome or bullet lens, IR - CUT interface, with import lens luminosity uniformity, working temperature control in 50 degrees Celsius, the service life of 20000 hours.
